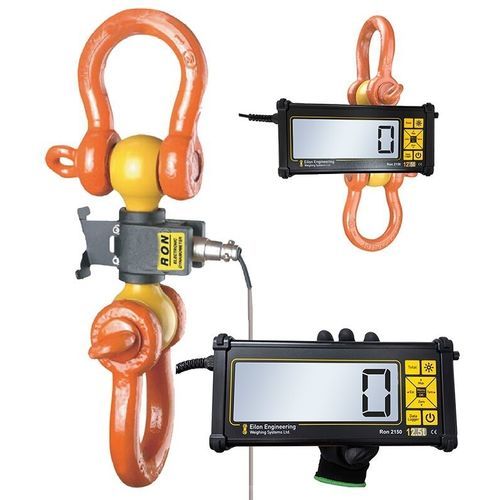

Digital dynamometer Ron 2150-S

for aquaculturefor bollard pull testfor cranes

A unique combination of a small and lightweight load cell with a large backlit 2"/50mm display. Excellent readability from a distance and a robust aluminum indicator with a fatigue rated, 5:1 safety factor load cell. High accuracy load cell (0.1% of full scale) for reliable measurements Especially suited for load headroom applications the 90 degree shackles hole design reduces bending of the load cell for increased safety and accuracy. Multiple options available for increased functionality. Highly Accurate: ± 0.1% of full range - important for early overload detection. Flexible: Indicator can be hand-held or attached to load cell Readable: Large digits can be read from a distance. Excellent battery life: Up to 2000 Hours (3x AA batteries) Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508. Robust: Heavy duty designs with shock absorbing mechanisms. Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy. Minimal Headroom loss: Smallest on the market - important for indoor applications. Cable Length - 5m H1 (max.) - 123mm H2 (max.) - 92mm B (max.) - 16mm Ø D1 (max.) - 31mm Ø D2 (max.) - 21mm Matching Anchor Shackle Size - ½, 7/16, ⅜,⅝
