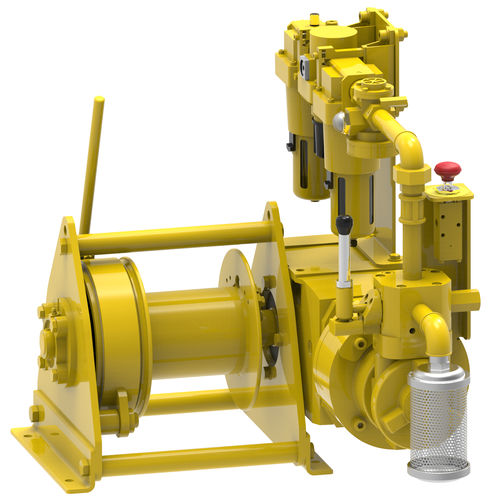

Ship winch A30 H / A30 L / A30 M

towingelectric drivesingle-drum

A comprehensive range of standard winches with a high effi performance gearbox developed for heavy duty pulling and lifting duties of up to 2,700 kg. This broad range comprises a variation of very compact winches and each type is standard available with a choice of 3 different speeds. Drum lengths can easily be adapted to customer requirements. Standard features High efficiency transmission IP 54 400 V AC / 3-phases / 50 Hz braked motor Steel drum (not grooved) with cable fixing point at flange Two drum supports (all other models) Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010 FEM / ISO class: T3-L3-M4 Mechanical options IP 56 TENV cast iron motor for marine applications 230 VAC single-phase motors (up to 1.8 kW) 24 V DC motors Hydraulic motors Explosion-proof motors Manual or remotely controlled disengaging clutch Protective steel motor cover Band brakes Grooved drum Motor position vertically up Drum pressure roller Alternative speeds Alternative drum dimensions / split drums / additional rope anchors / etc. Drum guards Marine / offshore coating systems Control options Control box IP 55 with push-buttons and emergency stop built acc. to NEN60204-32 Control box IP 66 with low voltage IP 65 remote control built acc. to NEN60204-32 Load limiter Frequency inverter for variable speed control Wireless radio remote control systems Limit switches Slack wire switches
