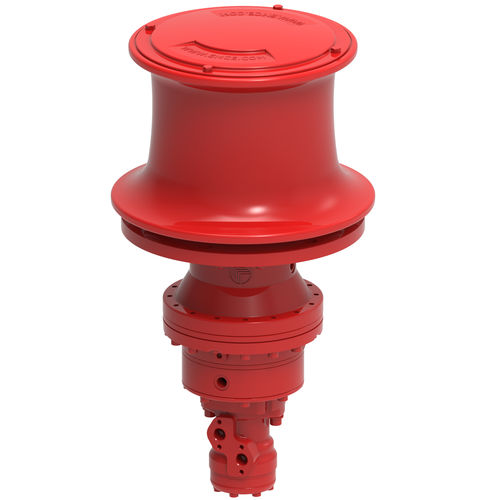

Ship capstan C xxx H series

hydraulic

Wormgear capstans Self-braking worm gear drives with electric, hydraulic or even pneumatic motor, available in on-deck or below-deck build types. The on-deck drive is equipped with a waterproof motor for intermittent use. The below-deck drive is equipped with a dripwater-proof motor and a mounting plate with an extra self aligning bearing suitable for high static loads such as with mooring ropes. Pneumatic drives are available upon request. Planetary capstans Featuring a cast iron capstan head mounted on a heavy duty planetary gearbox. The entire drive is mounted in a watertight tube frame providing optimal protection from the elements. Pneumatic drives are available upon request. Capstans up to 15 tons can be offered upon request. Standard features Heavy duty wormgear or planetary gearbox IP 54 braked motor 400 VAC / 3-phases / 50 Hz for planetary capstans IP 56 TENV cast iron 400 V AC / 3-phase / 50 Hz non-braked motor for on-deck wormgear capstans IP 54 400 V AC / 3 phases / 50 Hz non-braked motor for under-deck wormgear capstans Single speed and one direction only (electric capstans only) Orbit or radial piston type hydraulic motor Vertical cast iron warping head according to ISO 6482 Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 5010
