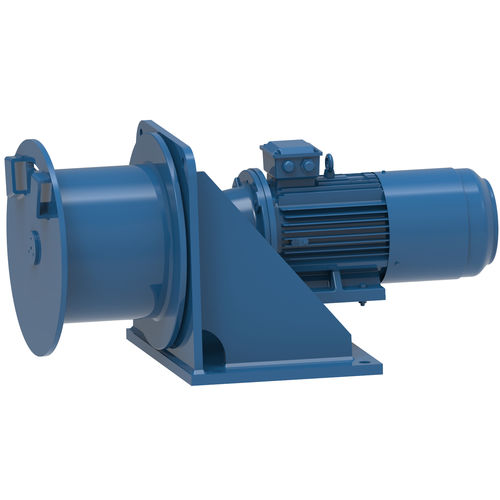

Ship winch FD 30x E series

towingelectric drivesingle-drum

Specially designed for applications where space is at a premium, these compact and lightweight lifting winches are ideally suited for installation on cranes, davits and derricks. The single drum support enables the rope to leave the drum at any angle. The heavy duty planetary drive is partly located within and protected by the drum core. The large drum diameters ensure a healthy drum to cable diameter ratio and a suffi cient working length despite the short drums. Standard features Heavy duty planetary gearbox FD E; IP 54 400 V AC / 3-phases / 50 Hz braked motor FD H; orbit or radial piston type hydraulic motor complete with brake valve FD LV; van type air motor complete with hand control valve and mufflers FD GP gear type air motor complete with hand control valve and mufflers Steel drum with cable fixing point at flange - Single drum support Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010 FEM / ISO class: T4-L3-M5
