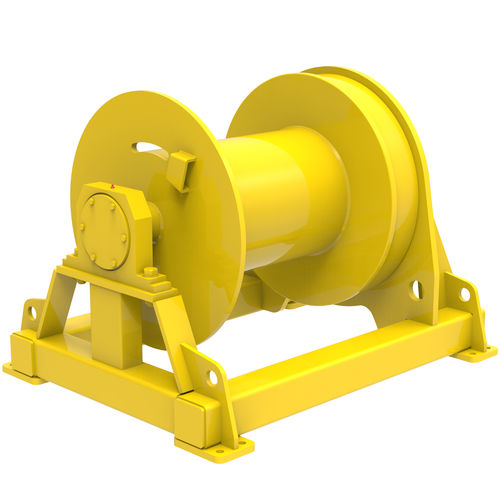

Ship winch OHW series

towinghydraulic drivesingle-drum

A range of ultra compact lifting and pulling hydraulically driven winches specially designed for offshore applications or for any other hazardous environment where space is limited. The heavy duty planetary gearbox and brake are mounted within the drum core, which both saves space and protects from any external damage. Winches designed to meet independent third party requirements such as Lloyds, ABS, DNV, etc. These standard winches can be fi tted with several options and accessories. The winches are manriding prepared. Adding specifi c options and reducing the WLL means that the winch can be used for manriding applications too. Winches are supplied without a control valve as standard, however, they do have a single acting shuttle valve. Standard features OHW: utility lifting OHR: manriding prepared Heavy duty integrated planetary gearbox integrated Fixed displacement axial tapered piston motor (Rexroth A2FE series) Steel drum, length 610 mm with cable fixing point at flange Two drum supports Standard temperature range -10° to 50°C Oil bath disc brake Lifting lugs Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 1023 FEM / ISO class: T4-L3-M5 Mechanical options Marine / offshore coating systems Alternative drum lengths Drum pressure rollers Drum locking pins Band brakes (manual or automatic fail-safe) Drum guards Drum dividers Spooling gears Grooved drums Tubular offshore frame construction Manriding package Control options Proportional control valves Load limiters Limit switches (electric) Slack wire switches (electric) Proportional remote control valve HPUs
