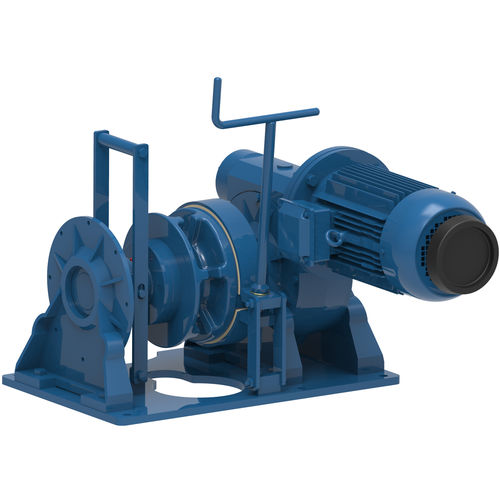

Electric windlass W xxx E series

for shipshorizontalabove deck

This series of windlasses has been aspecially designed for intensive use and therefore has a robust construction. The band brakes are lined with a ferrodo (non-asbestos) friction material. Standard features Heavy duty worm gearbox or planetary/ worm gear combination IP 56 TENV cast iron 400 V AC / 3 phases / 50 Hz non-braking motor with torque knob Orbit type hydraulic motor Suitable for 10 – 28 mm DIN / Studlink chain sizes from 12.5 – 28 mm Free-fall clutch Band brake Horizontal cast iron warping head Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 5010 Mechanical options Alternative supply voltages Full manual control by means of hand wheel Horizontal warping head confi guration Remotely controlled band brakes Classifi cation certifi cate from any recognised marine classifi cation body Special marine / offshore coating systems Control options NEN60204-32NEN 1010 Proportional local or remote control valve
