VSAT antenna DSi9Ku-bandinternetbroadband
Add to favorites
Compare this product
Characteristics
- Network
- VSAT, Ku-band, internet, broadband, 4G
- Application domain
- for boats, for ships, for yachts, for sailboats
- Type
- radome, parabolic
- Voltage
- 24 V, 48 V
- Electrical power
Min.: 8 W
Max.: 24 W
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 55 °C
(131 °F)- Elevation
Min.: -15 °
Max.: 120 °
- Diameter
90 mm
(4 in)- Height
114 cm
(45 in)- Depth
111 cm
(44 in)- Weight
75 kg
(165 lb)
Description

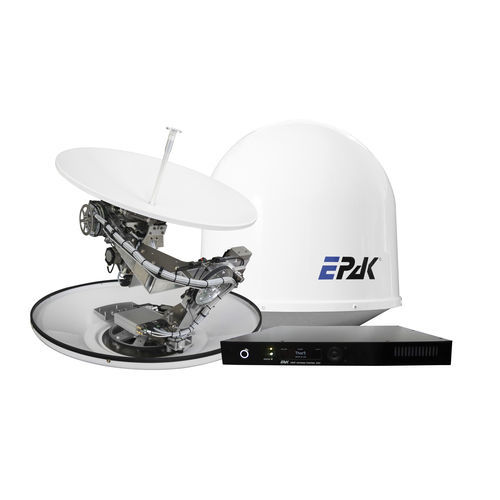

Marine VSAT antenna with 90 cm dish size for Ku-band satellite services
The DSi9 Ku employs state-of-the-art technology and is our most sought maritime VSAT antenna in Ku-band. With the latest generation of tracking technology, the DSi9 Ku represents the perfect solution for all requirements of reliable and fast internet on any type of marine vessel.
EPAK designs and builds VSAT internet antennas to work even in the hardest weather conditions at sea. Only top-quality materials are used and manufacturing is done in-house, observing tight quality control regulations and safety norms.
Radome Dimension
111 cm x 114 cm (43.7" x 44.9")
Weight (incl. radome)
75 kg (165.35 lbs)
RX Frequency
10.7 - 12.75 GHz
TX Frequency
13.75 - 14.5 GHz
RX Antenna Gain
39.5 dBi @ 12.5 GHz
TX Antenna Gain
40.3 dBi @ 14.25 GHz
RX / TX polarization
Linear, Co-pol and X-pol
G/T
>18.2 dB/K (clear sky, 30° elevation)
