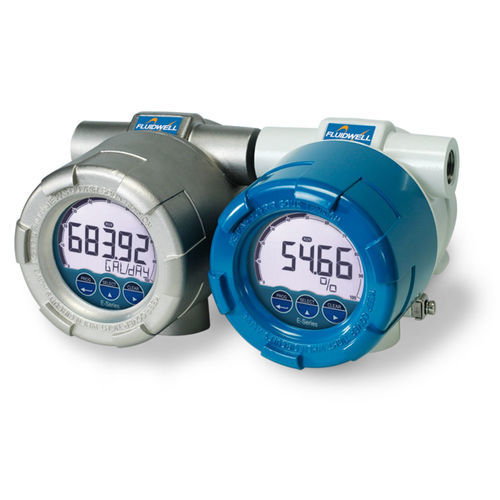

Ship indicator E490

temperaturemulti-functionpressure

The E490 is a versatile, loop powered multi-purpose indicator to display the actual process value, range and loop current. Besides the focus on level, temperature and pressure applications, the E490 can also work with other measuring units, like %, mA, RPM and even the possibility to create a custom unit with max. 8 characters. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. The isolated input circuit can power the backlight circuit from the loop. The E490 accepts 4 - 20mA input signals from a wide range of process instruments, including flow (linear or square root), level, pressure and temperature transmitters. The E-series distinguishes itself by its quality and functionality driven European design and manufacturing. It is more than fulfilling the rules for explosion proof design, it is about safety during the daily operation. Often, the environment is much tougher than the explosion proof requirements demand. Thus dangerous conditions may be experienced due to a broken enclosure or a poorly made flame path. Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven explosion proof multi-purpose indicator. Advantages Saves time and improves flexibility with the through-glass keypad: no need to open the front cover. Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions.
