Wastewater treatment system

for shipsbiologicalmembrane

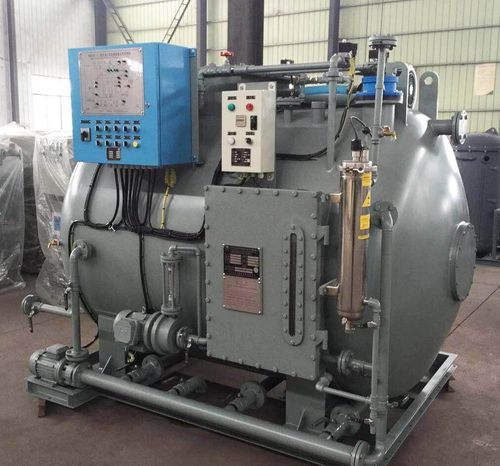

Fountom sewage treatment plant is designed to be used in ocean ships, platforms and even on lands, it complies with MARPOL 73/78 and latest resolution MEPC 227(64). Rated Capacity: 10 ~ 440 Persons Treated Load (Average): 840 ~ 30800 L/d Treated Load (Organic): 0.42 ~ 15.4 KgBOD5/d Power Consumption: 2.25 ~ 11.0 Kw Dry Weight: 900 ~ 4200 Kg After Treatment: TSS ≤35mg/L, BOD ≤125mg/L, Thermotolerant Coliform ≤ 100/100Ml, PH: 6 ~ 8.5 Ship Class Certification: ABS, BV, CCS, DNV-GL, RS General Working Principle The machinery adopts the principle of activated sludge, bio-contact oxidation and MBR (membrane biological reactor) to digest organic pollutant repeatedly. MBR can treat organic pollutant efficiently, drastically and cleanly to ensure the sewage can meet the standards to be discharged. Standout Features Horizontal circular structure allows huge pressure resistance and MBR technology saves more on-board space; Auto-control function allows unattended operation 24/7; The after treatment fluid can be recycled to other usage with further treatment.
