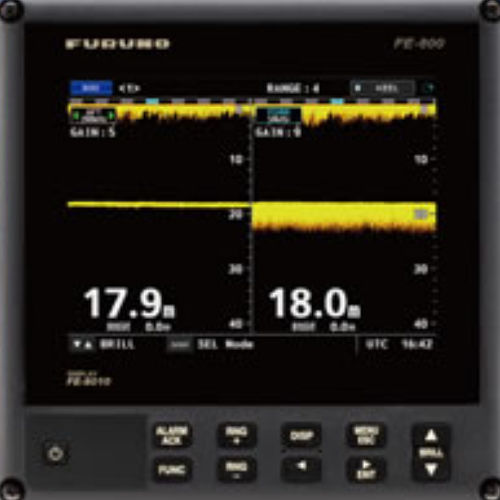

Boat echo sounder FE-800

for shipsdual-frequencyvisual

▶ Dual frequency display (50/200 kHz)* The depth at the FORE and AFT positions can be displayed simultaneously. ▶ A variety of display modes available: NAV, OS DATA and HISTORY ▶ High contrast 8.4" LCD ▶ When interfaced with FURUNO remote display RD-20/50, depth information can be observed at a remote location ▶ Optional printer interface available for printing out echogram ▶ Connecting a PC with the optional data recording software allows you to store, compile and print out the past data of the echogram via PC ▶ BAM (Bridge Alert Management) ready** Meets the specific requirements for alerts and interconnection with Bridge Alert Management in IMO MSC.302 (87) ** BAM capability is to be implemented as software update after the product release in early 2015. ▶ Depth data for the past 24 hours is storable in the internal memory For the amount of data for storage and playback on the FE-800, please refer to “HISTORY” on the right page. With the optional PC software, the sounding information can be stored and played back for 24 hours, when the recording interval is set at 5 sec. Visual and audible alerts screenshot ▶ Visual and audible alerts The FE-800 generates alerts when the water depth below transducer is shallower than a preset depth. When the seabed is lost due to the lowered power supply or out of range scale, an alert is generated. Current range setting, reference point for the depth reading (Transducer/Surface/Keel) as well as currently selected mode are displayed. (B) This area shows the information specifi-c to the display mode currently selected. Please refer to each of the display modes for details.
