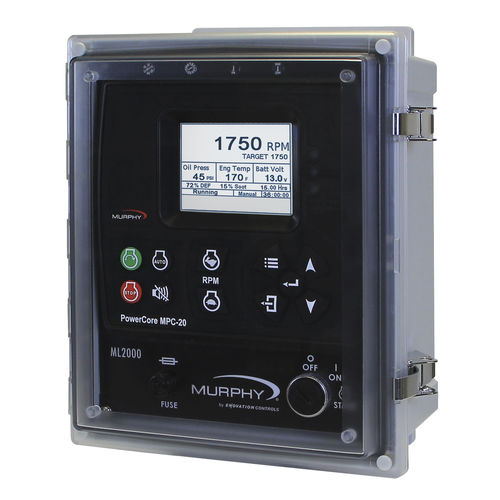

Boat monitoring and control panel ML2000

The MurphyLink® Series ML2000 Panel, engineered and built by Enovation Controls Industrial Panel Division, is a superior panel offering which includes the powerful, yet simple-to-configure MPC-20 Controller. This controller is part of the Murphy PowerCore family and was developed to meet the need of manual or automatic control whether its starting/stopping, throttling or both. This controller also has the flexibility to be used on either mechanically or electronically governed engines supporting SAE J1939 CAN communications. The ML2000 panel has the ability for the software to be fully configured from the front user interface or PC configuration tool. If the default parameters set by Enovation Controls are not the desired setpoints for a factory default reset, the packager or operator has the ability to change these settings with the PC configuration tool then load with a USB thumb drive1 and USB programming harness1. The configuration tool also allows for the splash screen to incorporate a company logo when powered on. The flexibility of the MPC-20 controller allows for the same control panel to be used across many applications. This provides the operator familiarity with the controller and control panel in any application. The Control Panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness2 (MIH) or John Deere OEM engine harnessing.
