Ships radar SUPERNET

for pleasure boatsmarineport

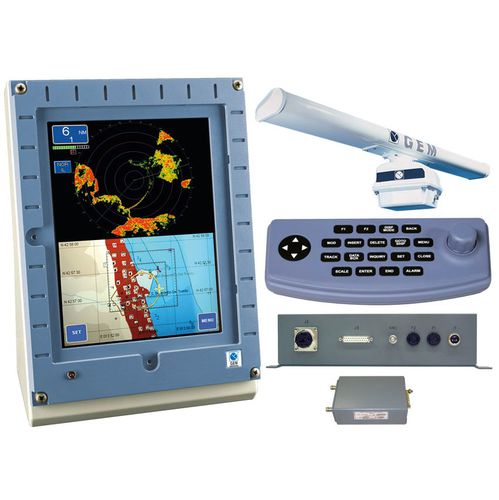

A series of radars with AIS capabilities for pleasure boats, commercial ships and fishing vessels, for a safer navigation. Multi display and multi scanner configuration: any radar system con be configurated with several displays and scanner unit in a dynamical way. The operator can choose the scanner unit to control with each display (master) on real time basis. “On the fly function” re-assignment: each display in the network can be converted in radar display, video plotter or overlay radar-plotter display on operator choice in a very independent and autonomous way without interrupting its operation. For OEM applications the scanner unit can be connected directly to standard PC using the RJ45 Ethernet port (no need for add-on hardware in the PC or external interfaces boxes, just power from ship to the scanner unit). GEM elettronica software drivers can be easily integrated in main operating systems like Microsoft Windows and Linux. Marine radar complete of Waterproof color Display DU69-12 super TFT LCD 12,1″ 800×600 pixel Array 4 feet AU11-04N Scanner Unit SU70-25E with built-in 25 Kw Power (nominal) Keyboard TST-800 Antenna Supply Unit ASU-41000 Cartographic Interface Unit IU69-12 Range 1/16 to 96 n.m, ATA 30 target included, AIS 50 target (sensor required). Video plotter for C-MAP MAX Chart, Logarithmic receiver, Power supply 24 Vdc ±10%, Universal mounting, Ethernet LAN. Installation cable 20 mt. kit of ancillaries, installation and operator manual.
