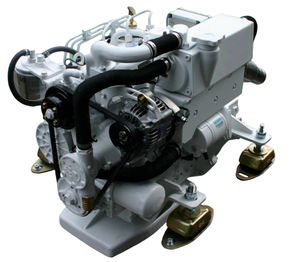

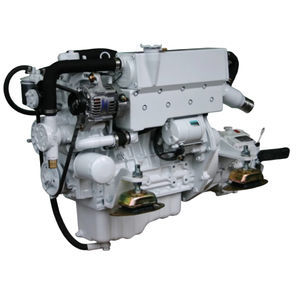

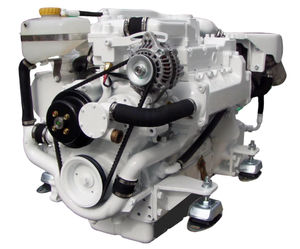

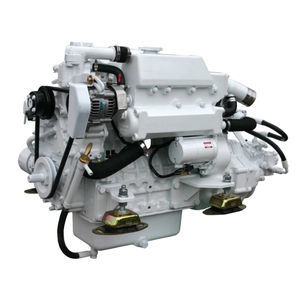

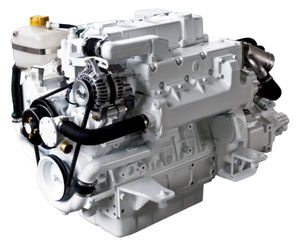

Inboard engine LP 4.100 T
dieselboatingdirect fuel injection

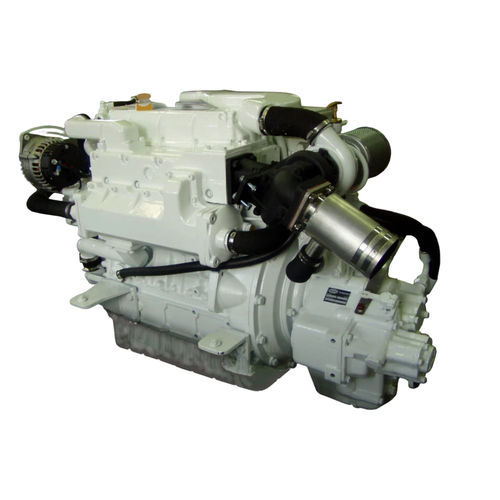

Inboard engine - LP 4.100 T - Ghisellini Srl - diesel / boating / direct fuel injection

Inboard engine - LP 4.100 T - Ghisellini Srl - diesel / boating / direct fuel injection - image - 2

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: boating
Technology: turbocharged, direct fuel injection
Cooling system: water-cooled
Power: 100 ch
(100 hp)
Displacement: 3,769 cm³
(127 US fl oz)
Number of cylinders: 4 unit
Engine speed: 2,600 rpm
(16,336 rad.min-1)
Bore: 100 mm
(3.9 in)
Stroke: 120 mm
(4.7 in)
Length: 1,110 mm
(44 in)
Width: 580 mm
(23 in)
Height: 750 mm
(30 in)
Weight: 320 kg
(705 lb)

Description

Standard equipment - Engine control panel with extension cable (digital) - Visual display: oil pressure, water temp, tachometer, running hour counter - Indicator lights: high water temp, low oil pressure, alternator charging, buzzer alarm, cancel alarm - Engine start-stop key, emergency stop (solenoid) - Flexible engine mounts - Marine gearbox Twin Disc Technodrive TM 93 ratio 1,51-2,09-2,40-2,77:1 ; TM93A ratio 1,51-2,09-2,40:1 Additional equipment - Shafting - Propeller - Single lever control - Cable for single lever control - Flexible exhaust hose - Water lock for exhaust gas / exhaust silencer - Fuel tank The basis for the engine LP 4.100 T is a carefully chosen Kubota engine, which is marinized using our longtime experience and expertise in this field. We have been able to achieve: - higher power rating - higher torque rating - lower exhaust gas emission values Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The combustion chamber and piston recess were optimized to achieve a 50% lower particulate matter (PM) level.
