Inboard engine LP 434
dieselboatingmechanical fuel injection

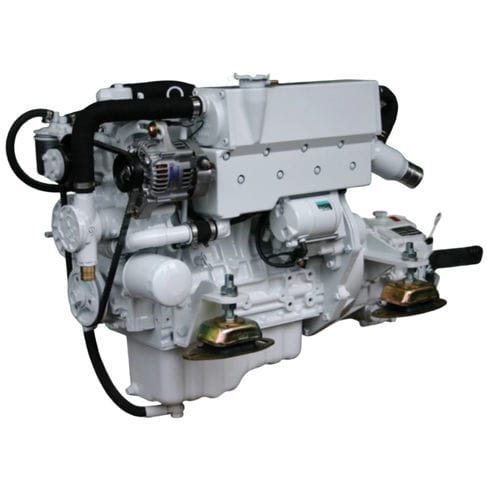

Inboard engine - LP 434 - Ghisellini Srl - diesel / boating / mechanical fuel injection

Inboard engine - LP 434 - Ghisellini Srl - diesel / boating / mechanical fuel injection - image - 2

Add to favorites

Compare this product

Characteristics

Type: inboard
Power source: diesel
Market: boating
Technology: atmospheric, mechanical fuel injection
Cooling system: water-cooled
Power: 36.2 ch
(36.2 hp)
Displacement: 1,498 cm³
(51 US fl oz)
Number of cylinders: 4 unit
Engine speed: 3,000 rpm
(18,850 rad.min-1)
Bore: 78 mm
(3.1 in)
Stroke: 78.4 mm
(3.1 in)
Length: 900 mm
(35 in)
Width: 420 mm
(17 in)
Height: 630 mm
(25 in)
Weight: 163 kg
(359 lb)

Description

Standard equipment - Engine control panel with extension cable (digital) - Visual display: oil pressure, water temp, tachometer, running hour counter - Indicator lights: high water temp, low oil pressure, alternator charging, buzzer alarm, cancel alarm - Engine start-stop key, emergency stop (solenoid) - Flexible engine mounts - Marine gearbox Twin Disc Technodrive TMC 60E; ratio 1,55-2,0-2,45-2,83:1 ; TMC 60A; ratio Additional equipment - Shafting - Propeller - Single lever control - Cable for single lever control - Flexible exhaust hose - Water lock for exhaust gas / exhaust silencer - Fuel tank The basis for the engine LP 434 is a carefully chosen Kubota engine, which is marinized using our longtime experience and expertise in this field. We have been able to achieve: - higher power rating - higher torque rating - lower exhaust gas emission values Kubota's original E-TVCS (Three Vortex Combustion System) has been improved. The combustion chamber and piston recess were optimized to achieve a lower particulate matter (PM) level.
