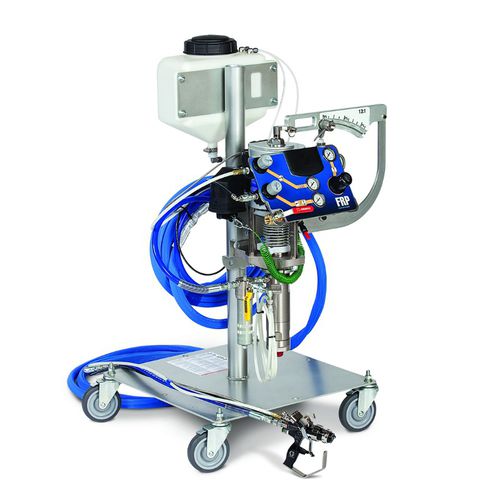

Resin metering - mixing unit FRP Gel Coat

electronicfor shipyards

Systems for applying gelcoat on open mold Graco’s gelcoat system offers you assurance that you achieve a high quality end product. By purely using Graco components that are proven in multiple industries, you will have a solution that is technologically advanced, durable, precise and long lasting. Optimized ratio stability *Available in 9:1, 13:1 and 17:1 pump ratios. *Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change. *Precision engineered linkage offers you superior ratio control and consistent cure Lower cost of ownership *Easy maintenance - fewer repair parts *Long lasting seals mean less downtime *Pumps last longer between planned maintenances *No surge bottle necessary, less parts, solvent and resin needed to prime the pump Optional DataTrak™ Control *Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day *Tracks cycles for preventive maintenance schedule *Displays real time flow rate - eliminates material waste due to worn spray tips FRP Proportioner Maximum air inlet pressure 7 bar, 0.7 MPa Maximum air inlet pressure to ASME solvent pressure pots 7 bar, 0.7 MPa Typical flow rate of pattern guns Refer to RS Gun manual. A component (catalyst) inlet size 3/8 in tube B component (resin) inlet size 1 5/16-12 UN-2A male Wetted parts Stainless steel, carbide, UHMWPE, PTFE, and acetal
