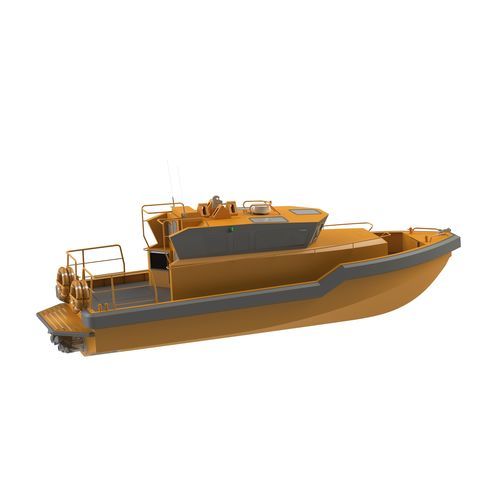

Patrol boat FDC 1003
rescue boatoffshore service boatwork boat

patrol boat
patrol boat
patrol boat
patrol boat
Add to favorites
Compare this product


Characteristics

Type
patrol boat, rescue boat, work boat, offshore service boat
Motor type
inboard, diesel
Material
aluminum
Class
DNV-GL
Hull type
rigid
Other characteristics
self-righting
Length

Max.: 11 m
(36'01" )

10.47 m
(34'04" )

Min.: 10 m
(32'09" )

Maximum width

3.42 m
(11'02" )

Draft

0.65 m
(2'01" )

Air draft

2.84 m
(9'03" )

Weight

Max.: 7,800 kg
(17,196 lb)

Min.: 5,250 kg
(11,574 lb)

Motor power

Max.: 235 kW
(319.5 hp)

Min.: 170 kW
(231.1 hp)

Cruising speed

Max.: 35 kt

Min.: 25 kt

Passenger capacity

Max.: 15 unit

Min.: 3 unit

Fuel capacity

Max.: 500 l
(132 gal)

Min.: 330 l
(87 gal)

Description

The Fast Daughter Craft - FDC 1003, davit launched to serve the Oil & Gas Offshore and ERRV market. Our 10m FDC 1003 comes with a DNV 1A HSLC R2 Service hull aproval and is designed and built in accordance with the latest Solas LSA regulations and and UKOOA requirements. Optional this Fast Daughter Craft could be outfitted with a twin hybrid propulsion system. The FDC’s are built by Habbeké Shipyard of seawater resistant Aluminium (5083- H111), the hull is a fully planing, deep V type and have a low freeboard aft to facilitate rescue operations, are self-bailing, have sufficient deck space, are self-righting, have a robust foam fender and are supplied with twin diesel inboard engines with waterjet propulsion . The singe point quick release hook system of Henriksen allows our FDC’s to be launched from the mother vessel in heavy seas. For the (standard) propulsion is chosen a combination of Steyr engines with ZF gearboxes, driving Hamilton waterjets. Hybrid propulsion can be offered optional
