Search searchlight TZ5marine
Add to favorites
Compare this product
Characteristics
- Type
- search
- Application domain
- marine
- Power
Max.: 3,000 W
Min.: 2,000 W
- Power supply
220 V
- Weight
29 kg
(63.9 lb)
Description

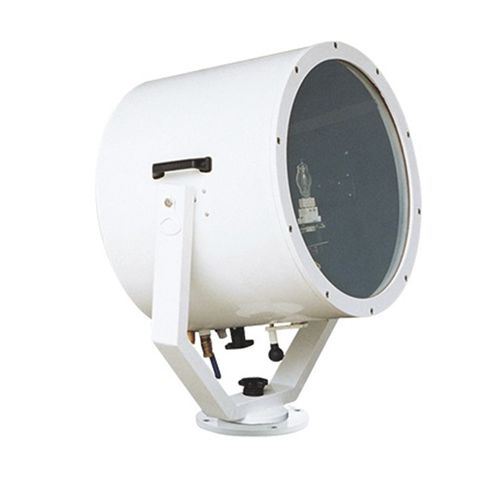

Model：Suez canal searchlight TZ5
Rated voltage：AC220V
Power：2000W、3000W
Power factor：≥0.9
Illuminant：halogen lamp
Lampholder：GY16
Exposure distance：2000W :1500m; 3000W: 2000m
Adjustment method：manual regulation, horizontally360°，up30°down 30°
Protection class：IP56
Cable outside diameter：Φ12-Φ14
Installation method：Seat-mounted type
Ambient temperature:-30℃-+55℃
Material：lamp body is high quality aluminium alloy, lampshade is toughened glass
Weight：29kg
Scope of application：applied to illumination of ships over 30000.SC.G.T when navigation in Suez canal, night navigation, and searching for surface obstacles
