Handling trailer 500 series

containerfor shipyardsfor terminals

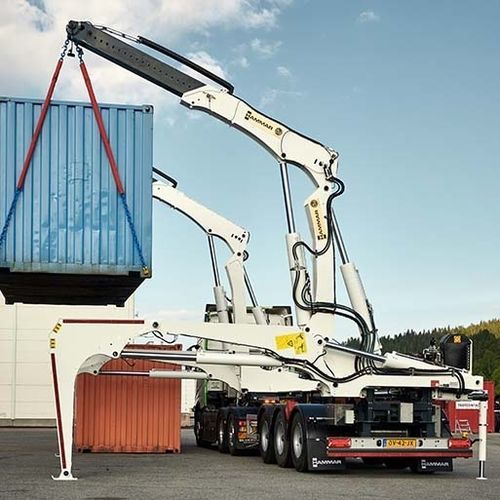

The Hammar 500 is the peak of Sideloader performance, offering unmatched versatility and capability. As the top-of-the-line model in the Hammar range, it is built for those who demand the highest capacity and the most advanced features available. With a lifting capacity of 36 or 45 tonnes (SWL) and a remarkable reach of 6 meters, the Hammar 500 stands out where other models fall short. The model's support legs feature three different operational modes, each excelling at different tasks. It has the ability to handle more complex situations and is particularly useful in yard or terminal operations. It is the ideal choice for those who need a Sideloader model that can do it all. Whether it’s heavy lifting or more advanced container placements, the Hammar 500 delivers excellent performance across the board. Hammar 500 Stepover Mode StepOver Mode The StepOver Mode is the main lifting mode of the Hammar 500. It has maximum stability, the highest Safe Working Load at range and is exceptional for transfer operations. Hammar 500 Dock Mode Dock Mode The Dock Mode take smaller space and can be placed on different elevations. It also enables the Hammar 500 to lift lighter loads outside the support legs range, allowing more versatile positioning of the load. The Sledge Mode has the fastest deployment and requires less space. Excellent for quickly handling containers in ground-to-ground operations. The Hammar 500 can stack up to two high cube containers two rows deep. Its extendable cranes ensure easy and precise positioning, allowing you to stack two containers high weighing up to 30 tonnes and two containers high, two rows deep weighing up to 17,1 tonnes.
