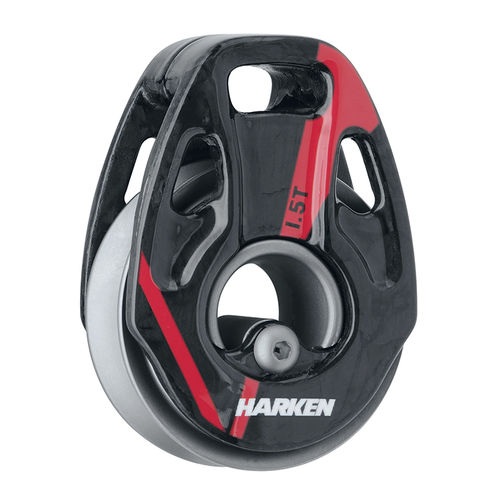

Single block 3294
cheekroller bearingmax. rope ø 9 mm

Single block - 3294 - Harken - cheek / roller bearing / max. rope ø 9 mm
Single block - 3294 - Harken - cheek / roller bearing / max. rope ø 9 mm
Single block - 3294 - Harken - cheek / roller bearing / max. rope ø 9 mm - image - 2
Single block - 3294 - Harken - cheek / roller bearing / max. rope ø 9 mm - image - 3
Single block - 3294 - Harken - cheek / roller bearing / max. rope ø 9 mm - image - 4
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
cheek
Bearing type
roller bearing
Maximum line diameter
max. rope ø 9 mm
Application domain
for sailboats
Material
carbon
Working load

1,500 kg
(3,306.9 lb)

Breaking load

3,000 kg
(6,613.9 lb)

Weight

81 g
(3 oz)

Description

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks are standard with 3D-molded carbon sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.
