- Equipment
- Outboard and Inboard engines
- Inboard engine
- HD Hyundai Infracore

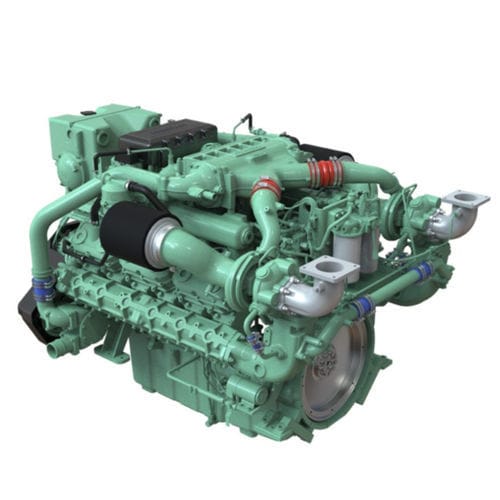

Inboard engine 4V222Cdieselcommercialcommon-rail
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- commercial
- Technology
- turbocharged, common-rail, SCR
- Engine type
- V
- Pollution control standard
- Tier 3, Tier 2
- Power
Max.: 908 kW
(1,234.5 hp)Min.: 530 kW
(720.6 hp)- Displacement
22 l
(6 gal)- Number of cylinders
12 unit
- Engine speed
Max.: 2,300 rpm
(14,451 rad.min-1)Min.: 1,800 rpm
(11,310 rad.min-1)- Bore
128 mm
(5 in)- Stroke
142 mm
(5.6 in)- Length
1,914 mm
(75 in)- Width
1,323 mm
(52 in)- Height
1,346 mm
(53 in)- Weight
2,020 kg
(4,453 lb)
Description
A 22 liter-class, IMO Tier II/III V-type engine (maximum output: 720-1,235 PS) typically mounted on passenger/fishing boats and boats for fishing excursions.
High performance solution- Advanced Fuel Injection System with common Rail
- Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
- SCR (Selective Catalytic Reduction) technology is used for IMO Tier III
- Increased durability of key components
- Decrease smoke level
Convenience / Maintainability / Stability- Application of Auto Tensioner
- Application of Turning Device
- Application of Safety Guards
- Application of Electrical oil drain pump
- Application of CCV type for improving engine room cleanliness
Economical solution- Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
- Increased oil &filter replacement cycle (250hr → 500hr)
Catalogs
No catalogs are available for this product.
See all of HD Hyundai Infracore‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
