Military boat ORC - FCV

inboardaluminumrigid hull inflatable boat

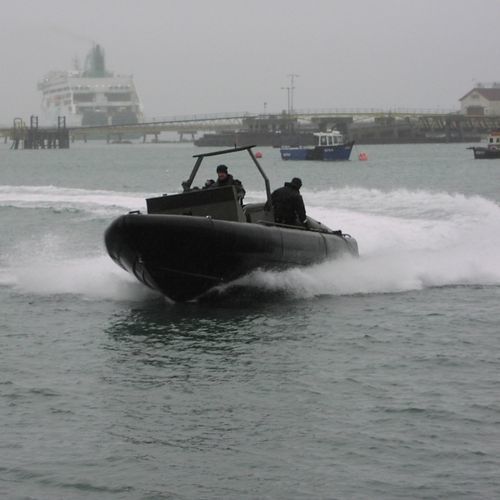

The Forward Console Variant (FCV) is a further development of the ORC-ACV and is configured with the console as far forward as possible. This gives a larger aft deck area for deploying a varying combination of troops and equipment. The transom is arranged as a removable panel for ease of loading/unloading. The open aft deck area can be arranged to accommodate seating for up to 8 troops or used as a load area for other equipment. Length – 9.1 m Beam – 2.9 m Draft Light – 0.56 m Draft Loaded – 0.66 m Displacement – Light Load 4150 kg inc fuel & 2 crew Full load – 5500 kg Speed – Light load 41 knots, Full load – 36 knots Range - In excess of 200nm
