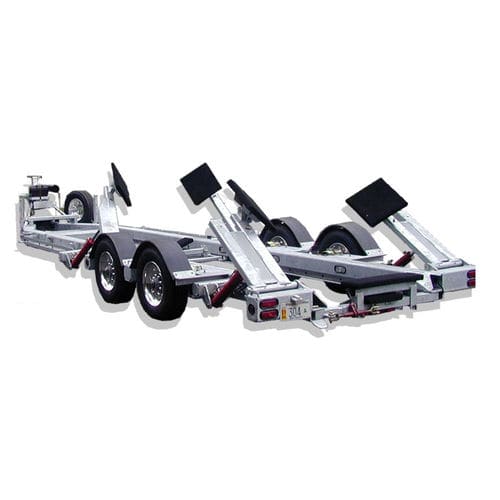

Road trailer HSTA series

for sailboatshydraulicelectric

HOSTAR Model HSTA3400 Hydraulic Trailer, configured with the following equipment and/or specifications: • 7" x 7" x 3/8" structural steel main frame • Hydraulics: * Four hydraulic arms, extendable to handle to 6' draft * Hydraulically operated front landing wheels * Front hydraulics for fore and aft leveling of main frame * Solenoid valves for remote operation with handheld control box and walk-around cable * Pilot operated double-locking valves on all cylinders * 12VDC electric hydraulic power unit • Remote control - 6 hydraulic functions, 2 air functions • Outboard four-wheel air-ride suspension, plus shock absorbers • Air shutoff valves and straps for lifting axles • Cross beam pockets through main frame • Two removable slide-through cross beams • Height-adjustable rolling forward cross beam with V-pad • 10,000 lb. Dexter axles with corrosion-resistant disc brakes • Four 215/75R/17.5 Load Range H radial tires, 16 ply rating • Electric/hydraulic brake actuation • D.O.T. flexible brake lines with brass fittings • Stainless steel hose ends, fittings, T-pins, hardware • Expanded metal basket at front of frame • Flexible fenders • Extra-bright LED submersible lighting system • Hydraulically operated pintle ring draw bar with safety chains • Breakaway switch • Galvanized frame, arms, cross beams, covers
