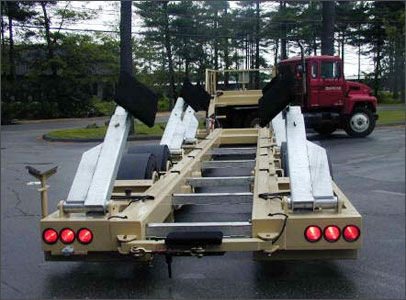

Road trailer HHT series

for sailboatshydraulicelectric

Heavy-duty, open center submersible highway trailers for road tractors. Tandem and tri-axle dual wheel designs. First choice of professional haulers for big boat handling with push-button ease. Air-ride suspension and all-road-wheel air brakes standard. Two control boxes for hydraulic operation. Galvanized arms and wheels; frame can be finished in a variety of corrosion resistant coatings. • Remote control of all functions • Four or six extendable hydraulic arms • Hydraulic nose wheels • Low profile radial tires, pressure-lube bearings • Air lock battery compartment • Optional aluminum slide-out load beams HOSTAR Model HHT4200S Hydraulic Boat Trailer, configured with the following equipment and/or specifications: • 10" x 10" x 1/2" structural steel tube with 12" channel main frame • Frame sealed, pressure tested for air tightness to prevent corrosion • Gooseneck with safety railing for operation with fifth-wheel • Locking recessed diamond plate box in gooseneck, housing pumps, motors, control valves, batteries, etc. • Hydraulics: * Six hydraulic arms, extendable to handle to 8' draft * Hydraulically operated front landing wheels * Solenoid valves for remote operation - dual control boxes for walk-around control of hydraulic and air functions * Dual electric 12VDC hydraulic power units * Pilot operated double-locking valves on all cylinders • Independent air-ride suspension • Two Dexter Heavy-Duty Series 20,000 lb. oil bath axles • Air brakes - 12 1/4" x 7 1/2" • Eight 235/75R17.5 Load Range H tires • Stainless steel T-pins, hardware • Five slide-through/removable oak cross beams • Extra-bright LED submersible lighting system • Flexible fenders
