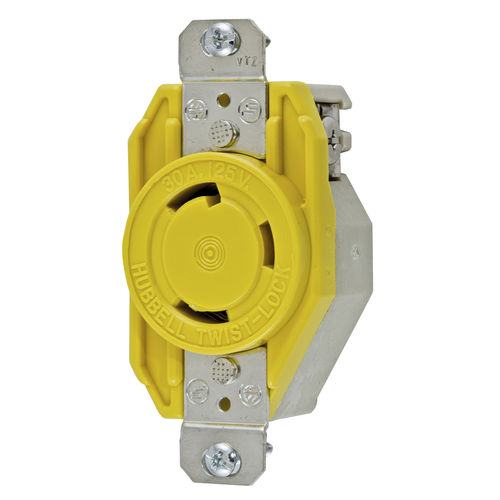

Dock electrical plug HBL26CM10
female

dock electrical plug
dock electrical plug
Add to favorites
Compare this product


Characteristics

Application domain
for docks
Type
female

Description

Locking Devices, Twist-Lock®, Marine Grade, Corrosion Resistant Single Flush Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Nylon face, Yellow. Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection Face color coding by voltage facilitates locating and mating of proper devices Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems Corrosion Resistant Product Details General Application Marine Wiring Devices Environmental Conditions Corrosion Resistant Horsepower - Maximum 2 Item TypeSingle Flush Receptacles Material Nylon Material - Mounting Hardware Screw Mounting Number Of Poles 2-Pole OEM Brand Name Hubbell Wiring Device-Kellems Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact Performance Dimensions Display Size Standard Sized Product Height 1.31 in Length 3.28 in Weight 0.30 lb Width 1.70 in Electrical Ratings Amperage Rating 30 A Connectivity Back and Side Wired Screw Terminals Current / Amperage Rating 30 A Current Rating 30 A Dielectric Strength Withstands 2,000V minimum Phase Single Phase Voltage Rating 125 VAC Voltage Rating Description 125 VAC Wattage 3750 W Conductor Related Number Of Wires 3-Wire Wire Size #16 AWG to #8 AWG Certifications and Compliance Industry Standard(s) Listed to UL 498 Fed.Spec . W-C-596 Certified to CSA C22.2 No.42 Nema Rating L5-30R Logistics Carton Quantity 10
