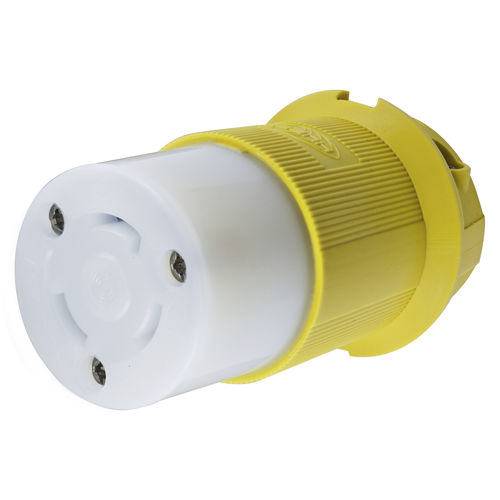

Dock waterproof plug HBL26CM13

female

Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Yellow Nylon. Ribbed nylon housing provides a secure grip and impact and chemical resistance. Superior cord grip design protects terminations from excess strain. Integral dust shield protects wiring chamber from dust or contaminants. Corrosion Resistant Product Details General Application Heavy Duty Industrial/Marine Color Yellow Cord Range 0.360"-0.930" (9-24) Environmental Conditions Corrosion Resistant InsulationInsulated Body Item Type30A Corrosion Resistant Insulgrip® Connector Material Nylon Material - Mounting Hardware Cord Mounted Number Of Poles 2-Pole OEM Brand Name Hubbell Wiring Device-Kellems Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) TypeConnector Body UPC783585039091 Dimensions Display Size Standard Height 3.86 in Length 2.26 in Weight 0.40 lb Width 2.26 in Electrical Ratings Amperage Rating 30 A ConnectivityPressure Terminal Screws Current / Amperage Rating 30 A Current Rating 30 A Dielectric Strength Withstands 2,000V minimum Phase Single Phase Voltage Rating 125 VAC
