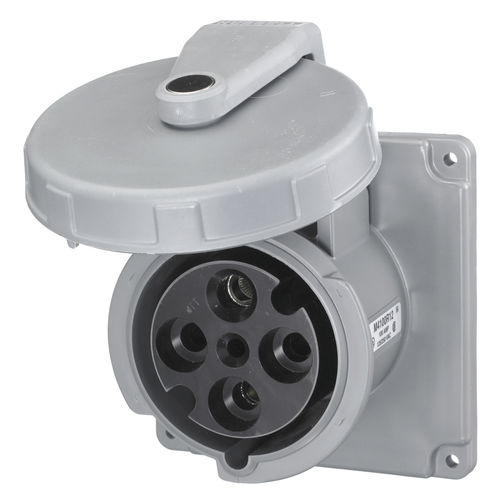

Dock watertight electrical plug M4100R12

female

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Receptacle, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Yellow Insulated non-metallic housing Self-closing gasketed cover Color coded housings for easy identification Application - Marine Wiring Devices Color - Gray Environmental Conditions - Weather Resistant Item Type - Single Material - Thermoplastic Material - Mounting Hardware - Screw Mounting Number Of Poles - 3-Pole OEM Brand Name - Hubbell Wiring Device-Kellems Performance - Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
