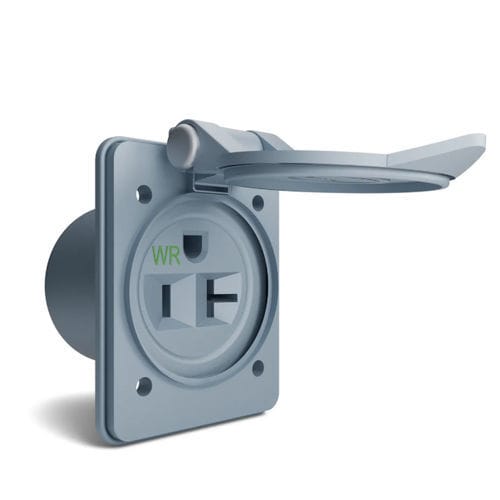

Dock waterproof plug HBL61CM65

female

Straight Blade Devices, Outlet, Flanged, Marine, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray, Single Pack. Weatherproof flip lid Weatherproof boot covers terminals Multiple drive screws Nickel plated brass contacts Accepts Ring Terminals, Corrosion Resistant Product Details General Application Heavy Duty Industrial Heavy Duty Color Yellow Environ mental Conditions Indoor Dry Unless Protected By Additional Means Horsepower - Maximum 1 Item TypeFlanged Single Material Nylon Material - Mounting Hardware Screw Mounting Number Of Poles 2-Pole OEM Brand Name Hubbell Wiring Device-Kellems Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only TypeFlanged Receptacle Dimensions Dimensions 2.68 in x 2.25 in x 2.68 in Display Size Standard Sized Product Height 1.23 in Weight 0.40 lb Electrical Ratings Amperage Rating 20 A Connectivity Back and Side Wired Side Wired Only Current / Amperage Rating 20 A Current Rating 20 A Dielectric Strength Withstands 2,000V minimum Phase Single Phase Voltage Rating 125 VAC Voltage Rating Description 125 V Wattage 2500 W
