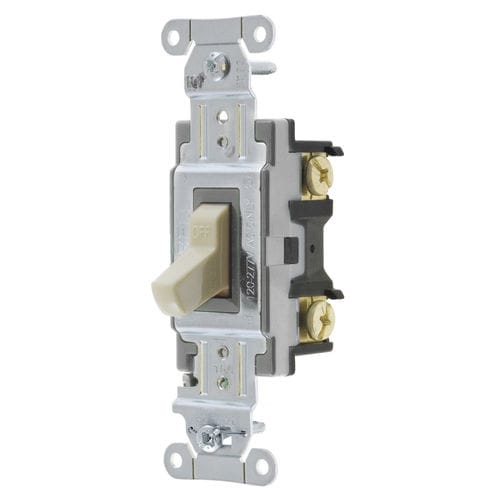

Boat switch CS115I

electrical circuitlighting

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, IvoryToggle. Thread cleaning captive mounting screw Abuse resistant nylon toggle Steel, zinc plated bridge is corrosion resistant Product Details General Color Ivory Item TypeSingle Pole Toggle Switch Material Nylon Number Of Poles Single Pole Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact Performance Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only Series General Purpose Style Single Pole TypeToggle UPC 783585901053 Dimensions Height 1.83 in Length 4.18 in Weight 0.15 lb Width 1.49 in Electrical Ratings Amperage Rating 15 A Connectivity Side Wired Only Current / Amperage Rating 15 A Current Rating 15 A Dielectric Strength Withstands 1500V AC minimum for 1 minute Temperature Rise - Max. 30°C maximum at rated current Voltage Rating 120-277 VAC
