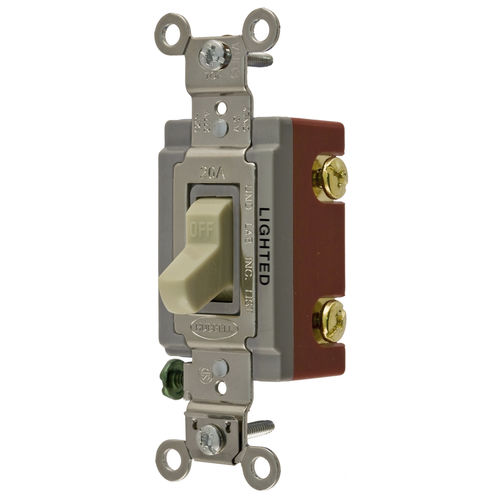

Boat switch HBL1221IL

electrical circuitlighting

Switches and Lighting Controls, Industrial Grade, Illuminated Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory Toggle Large brass binding head screws with deep slots Abuse resistant nylon toggle Strip gauge for accurate wiring Illuminated Toggle Product Details General Application Back and Side Wired Color Ivory Indicator Light On with Load Off Item TypeSingle Pole Illuminated Toggle Switch Number Of Poles Single Pole Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact Performance Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only Series Extra Heavy Duty Style Single Pole TypeToggle UPC 783585431406 Dimensions Height 1.86 in Length 4.06 in Weight 0.2 lb Width 1.31 in Electrical Ratings Amperage Rating 20 A Connectivity Back and Side Wired Current / Amperage Rating 20 A Current Rating 20 A Dielectric Strength Withstands 1500V AC minimum for 1 minute Temperature Rise - Max. 30°C maximum at rated current Voltage Rating 120-277 VAC Voltage Rating Description 120-277 VAC
