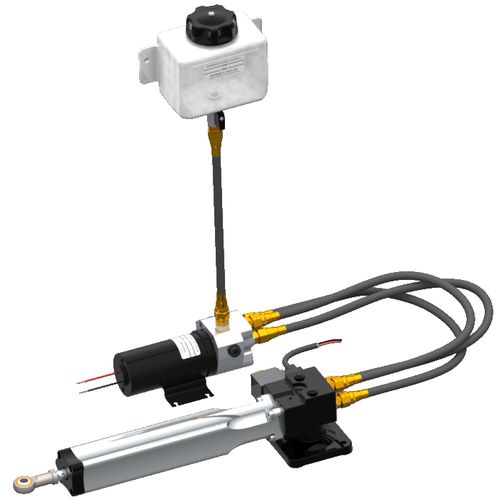

HS+40 Hydraulic Steering System The HS+40 hydraulic steering system has been designed specifically for marine secondary steering applications. It comes fitted with a PR+ reversing pump which, depending on the size of pump selected, can produce thrusts of up to 6900N. A solenoid clutch is fitted that when disengaged enables mechanical steering to be used. Built-in relief valves protect the installation and there is a further option of mounting a linear feedback transducer on the cylinder. The systems consist of a compact cylinder which includes the clutch and relief valves, pump, reservoir and all hoses and fittings. They come pre-filled and bled ready for use and are supplied complete with fasteners for mounting the cylinder and pump, and a tiller bolt. Ingress protection: - IP67 EMC Protection S EN 60945: - 2002 (DC) Ignition Protection BS EN 28846: - 1993 EN ISO 10592: - 1995 (Small Craft - Hydraulic Steering Systems) Ambient Operating Temperature: - -15 to +55 deg C Max Operating Thrust: - 6900N (Intermittent) Relief Valve setting: - 62 bar (7800N) Orientation: - Red lead to positive - Extends Black lead to positive - Retracts Clutch coil: - 12 watt Clutch connection: - DIN 43650 (6-8 mm cable) Fluid: - ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV Weight: - 11 kg
