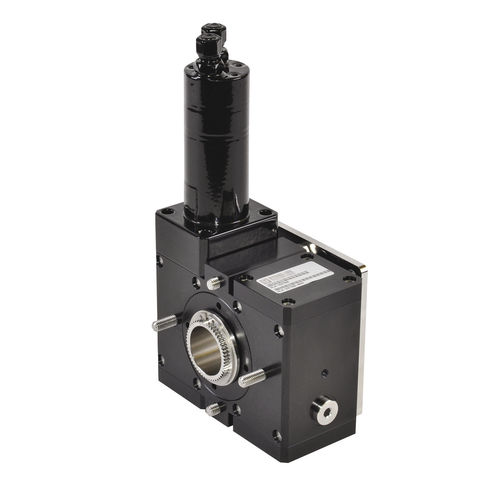

ROV rotary actuator HLK-22700

The HLK-22700 makes use of an industry standard hydraulic orbital motor to drive the input on a helical worm gear set to deliver a high torque at a low speed. The gearbox is constructed in corrosion resistant materials making it particularly suited for industrial, marine, and subsea applications that when oil compensated, can operate to ocean depths of 6000msw (19,680ft). A splined hollow output bore allows the passing through of hydraulic hoses or cables or could accommodate a rotary fluid or electric coupling for special applications. The standard configuration of output options include either a square 8 bolt flange plate or a round 4 bolt flange plate. Rotation can be either continuous 360° or can be limited to 90° or 180° via a separately supplied indexing plate. Features • - Utilising a helical worm gear arrangement to enable a low speed high torque output • - High torque output of 222Nm @ 125bar (163lbf.ft @ 1800psi) • - Manufactured from corrosion resistant materials • - Suitable for all types of industrial, marine or subsea applications • - Rotation can be continuous or locked with an indexing plate to limit rotation to 90° or 180°
