Outboard motor steering MF115-MRA

hydraulic

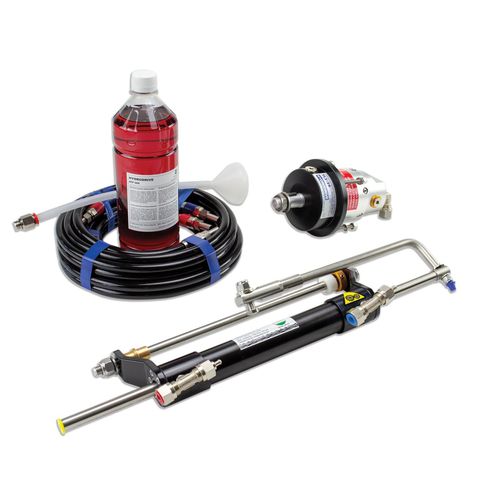

MF115-MRA Outboard Hydraulic System for engines up to 115-120 HP Pump with Automatic Pilot Connection, Engine Arm (BR72) included. Hydraulic pump: TL1-16 MRA, 16 cc pump, Max 80 bar, with NON-RETURN valve 4,5 turns Hydraulic cylinder: MC 115, 71 cc volume, Max 80 bar, stroke 210 mm 5 + 5 mt twin hose, 1 lt. hydraulic oil (ATF III G) (temp.+60°/-30°.) Output force: 236 Kg Torque: 51 Kgf Max speed: 50 Kts (90 km/h) Pump made by hardened , hot pressed aluminum Adonized and painted pump house, manufactured by precision CNC Cylinder made from cold drown, hardened adonized and painted aluminium Professional application, high quality, innovative technology, high precision pump. Universal fittings, Hydrodrive steering can be use every type of outboard engines. Easy installation process
