Boat steering MSD70TF-MRA

stern-drivehydraulic

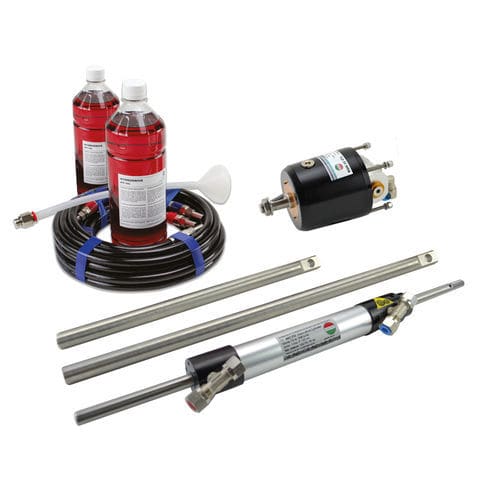

Complete Stern-Drive System for boats up to 12 m (40ft) with Anti-Feedback Valve Automatic Pilot Connection Port. This system can fitted with or without original engine servo steering. Kit supplied with: 1x Extension rod 320 mm (12,6''), 1x Extension rod 400 mm (13,7'') TL2-30 MRA Hydraulic Pump: 28 cc./rev, Max 80 bar, with fittings installed, Lock-Valve MC70 Hydraulic Cylinder: 112 cc. vol, Max 80 bar, with fittings installed, Stroke 202 mm High pressure twin hose set with fittings: 5/16 twin, B.P 480 bar, with fittings installed, Twin 6+6 m (20ft) Hydraulic Oil: 2 l E-HVLP 46 Output Force: 387 kgf. (853 lbf) Torque: 78 kgm. (564 lb-ft) Max Speed: 55 kts. Turns: 4 Pump made from full block hardened aluminium Cylinder made from cold drawn, hardened aluminium High Pressure Hose Set (1700 PSI- 120 bar) Universal application
