Outboard motor steering MF255WTS-SP

hydraulic

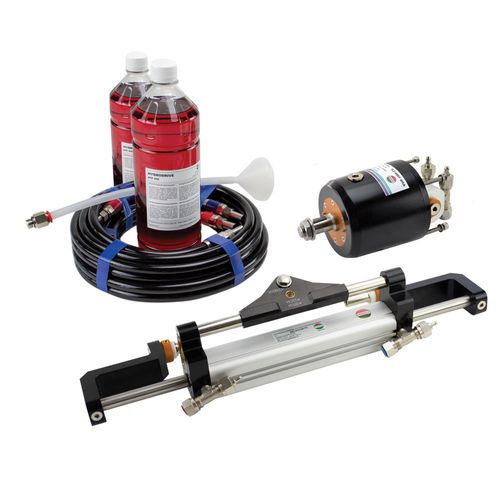

Hydrodrive MF255WTS-SP Outboard Hydraulic steering system for engines up to 250 HP. Racing boat application with slide cylinder. The high-precision hydraulic pump comes with Purge-Valve fittings, an Anti-Feedback valve and an Automatic Pilot connection port. The Hydraulic Cylinder has a new mounting system with a two-position engine plate so You can find the best position for the engine bracket. • Hydraulic pump: High precision TL2-40SP MRA, 38cc, max 80 bar., 3,3 turns • Hydraulic cylinder: MC255WTS with horns, 208cc, 208 mm stroke • 6+6m (20’) twin hose set • 2 L E-HVLP 46 high-pressure twin hose set with fittings, 2 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) • Output force:422 Kgf • Torque: 88 Kgm • Max, speed: 55 Knots Removable cup to replace the shaft seals without opening the pump. New cutting-edge technology Steering System. The pump is made of hardened, hot-pressed aluminium. Anodized and painted pump house, manufactured by precision CNC. Cylinder made from cold drawn, hardened anodized and painted aluminium. Universal fittings – Hydrodrive systems can be used on every type of outboard engine. Easy installation process.
