Outboard motor steering MF255-WTS

hydraulic

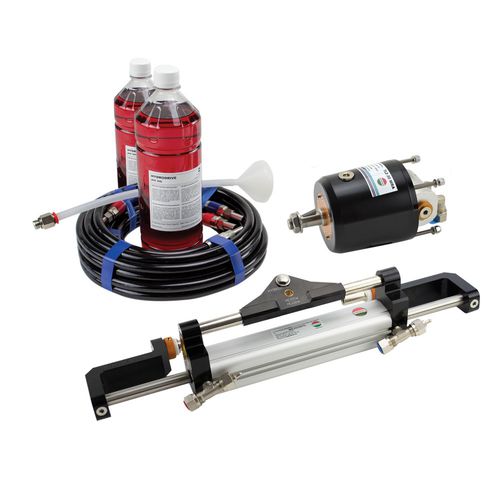

Hydrodrive MF255WTS Outboard Hydraulic Steering System kit up to 250 Hp with slider cylinder. Compact horns mount for engines up to 250 Hp. The hydraulic pump comes with an Anti-Feedback valve and Automatic Pilot connection port. The Hydraulic Cylinder has a new mounting system with a two-position engine plate so You can find the best position for the engine bracket. • Hydraulic pump: High precision TL2-30 MRA, 28 cc./rev pump., 4,5 turns • Hydraulic cylinder: MC255 WTS, 125 cc volume, stroke 206 mm • 6+6 m (20′) high-pressure twin hose set with fittings, 2×1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) • Output force: 422 kgf. (930 lbf) • Torque: 88 Kgm (637 lbf-ft) • Max speed: 55 knots • Turns: 4,5 Removable cup to replace the shaft seals without opening the pump. New cutting-edge technology Steering System. The pump is made from full-block hardened aluminium. Cylinder made from cold-drawn, hardened aluminium. High-Pressure Hose Set (1700 PSI-120 bar). Universal application for all types of engines. Extremely easy to Install.
