Boat steering MU100TF

hydraulic

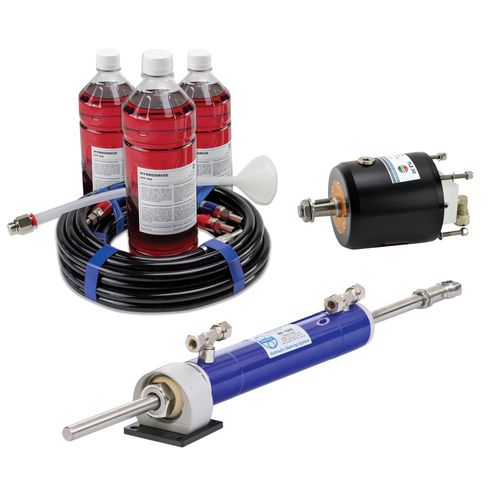

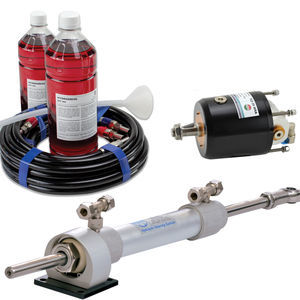

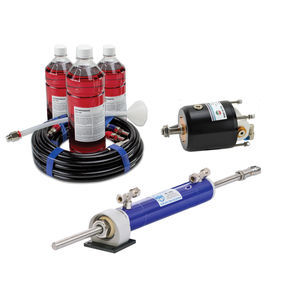

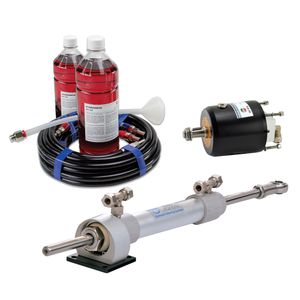

Hydrodrive MU100 TF Inboard Hydraulic system for sailing boats up to 16 m (52ft) • Hydraulic pump: High precision TL2-30 Hydraulic pump., 28 cc./rev, 5.7 turns • Hydraulic cylinder: MC 1000, 160 cc volume, stroke 225mm • 8+8m (26’) High-pressure twin hose set, 3 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.) • Removable cup to replace the shaft seals without opening the pump • not back-lash on the wheel • Output force: 495 Kgf (1091 lbf) • Torque: 112 Kgm (810 lbf-ft) • Max speed: 45 Knots Removable cup to replace the shaft seals without opening the pump. The pump is made from full-block hardened aluminium. Cylinder made from cold-drawn, hardened aluminium. Anodized and painted pump house, manufactured by precision CNC. Universal fittings – Hydrodrive Systems can be used on every type of engine. Easy installation process.
