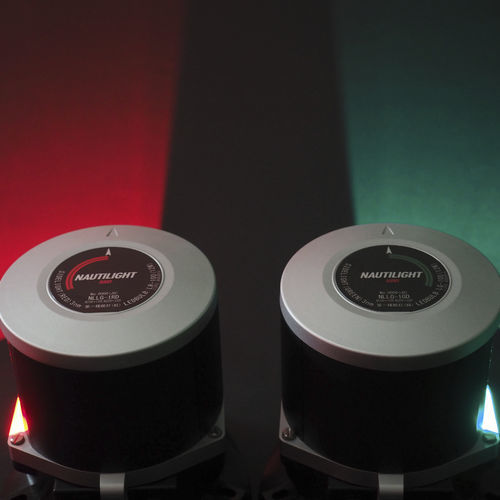

Ship navigation light NLL series

LED>50 mMED

IBUKI NAUTILIGHT NAVI NLL series is next standard of navigation light purposed for the ship length overall 50m and more complied with the relevant regulations and approved by the marine classification society. The light source is adopted light emitting diode(LED) with 40,000hrs operation.The LED bulb is purpose built NLL Navigation light by in-house design which is applied newly developed self-check circuit to monitor the malfunction and lifetime.In the event of a failure,circuit automatically cancel the voltage supply to avoid the further operational trouble under the abnormal condition.Simultaneously output the dry contact signal to the external navigation light controller for the purpose of indication by audible and visible alarm onboard.LED bulb is detachable which means it is not necessary to replace the whole light unit but just like incandescent bulb, it can be replaced by one-action without difficulty. The enclosure is universal pitch and same dimension.Moreover the height is same both single and double lens light whereas the stereotype navigation light has different height. The working voltage is in wide range of AC100V,AC220V and DC24V. Optional failure detection relay NLCR-2P series is available to monitor the status of power consumption of NLL navigation light to extend the connection with the existing navigation light controller. IBUKI NAUTILIGHT NAVI NLL series will expand the idea of ship’s design with technological benefits.
