Hydrographic survey echo sounder DT100
multibeam

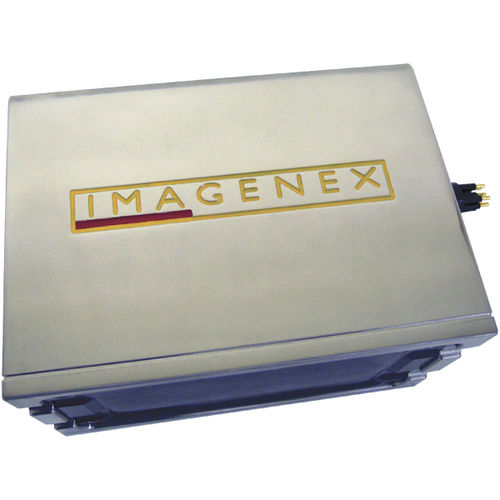

Hydrographic survey echo sounder - DT100 - Imagenex Technology Corp. - multibeam

Hydrographic survey echo sounder - DT100 - Imagenex Technology Corp. - multibeam - image - 2

Hydrographic survey echo sounder - DT100 - Imagenex Technology Corp. - multibeam - image - 3

Add to favorites

Compare this product

Characteristics

Application domain

for hydrographic surveys

Technology

multibeam

Max. depth

Max.: 100 m
(328'01" )

Min.: 60 m
(196'10" )

Operating frequency

240 kHz

Supply voltage

Max.: 32 V

Min.: 22 V

Power consumption

10 W

Description

Swath Width (nominal beam geometry) Transmit: 120° x 3° Receive: 120° x 3° Effective Beam Widths Narrow: 0.75° Medium: 1.5° Wide: 3° Number of Beams Default: 480 Selectable: 240, 120 Range Resolution Screen: 0.2% of range Output: 0.02% of range
