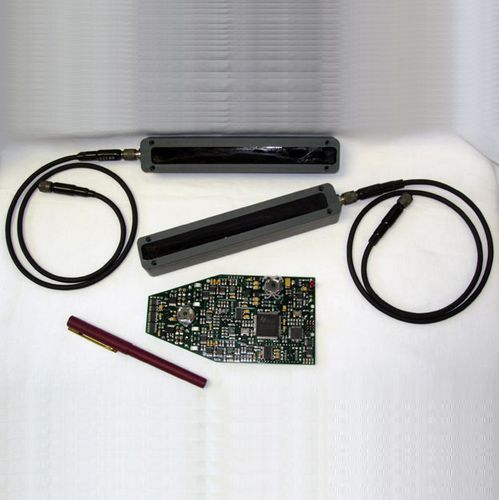

ROV sonar

side scan

Underwater Hardware Specifications Interface RS-232 serial interface @ 115.2 kbps (or optional RS-485) Frequency 330 kHz / 800 kHz Transducer Beam Width 330 kHz: 1.8° x 60° 800 kHz: 0.7° x 30° Range Resolution Both sides displayed: Range scale ÷ 250 Single side displayed: Range scale ÷ 500 Power Supply 10 – 16 VDC at 300 mA max. Electronics Dimensions See drawing Transducer Dimensions See drawing Weight in Air Transducers: ~300 g (0.7 lbs) each (with 24” pigtail) Electronics: ~70 g (0.2 lbs) Software Specifications Win881ss.exe v4.00 Windows™ Operating System Windows™ XP, Vista, 7, 8, 10 Modes Side Scan Range Scales 15 m, 30 m, 60 m, 90 m, and 120 m (50’, 100’, 200’, 300’, and 400’) File Format (filename).81s GPS Input (4800, N, 8, 1) NMEA 0183 Formats: GLL, GGA, VTG, RMC Recommended Minimum Computer Requirements 100 MHz Pentium 16 MB RAM 1 GB Hard Disk 800 x 600 x 256 colour graphics Ordering Information 330 kHz / 800 kHz Unit with Remote Mount Transducers w/24" pigtail* 881-000-157 *Note: Various connector/cable configurations available to be specified upon ordering. RS-485 Option -007 Remote Mount Transducers with connector* Option -026 *Note: Various connector/cable configurations available to be specified upon ordering. Remote Mount Faired Transducers Option -027
