Hydrographic survey echo sounder 965

for ROVfor AUVsmultibeam

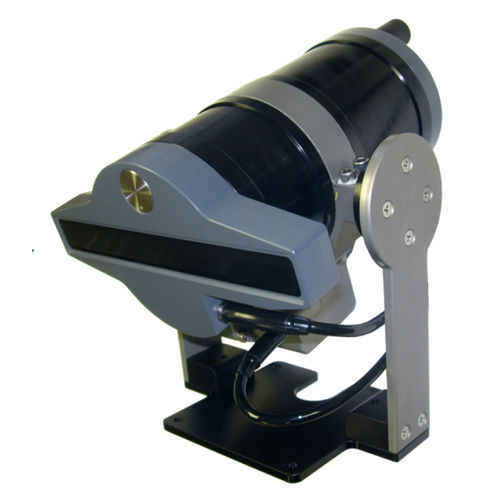

The Imagenex Model 965 is an advanced, high-speed, high-resolution, multibeam imaging sonar system that has been designed to provide simple, reliable, and accurate representation of underwater images. The system consists of an underwater sonar head and an optional tilt motor assembly (recommended) connected by Ethernet to a Windows™ based computer. The Model 965 includes circuitry which permits the attachment of an optional tilt motor assembly. As a recommended option, this drive, which allows for real time vertical angular adjustment of the sonar, enables the operator to adjust the vertical scan angle from +10° to -90° in 5° increments. This permits the operator to tilt the sonar down towards the target as it approaches. Features Built-in tilt drive electronics Enhanced vertical scan capabilities High speed Ethernet (10/100 Mbps) Programmable Simple set-up and installation 1.25 m to 200 m range scales Integrated Video Capture and Display User programmable IP address Applications ROV, AUV, & UUV Offshore Oil & Gas Sunken Timber Recovery Diving Support Surveying Search & Recovery Inspection Underwater Archaeology Scientific Research Harbour Surveillance
