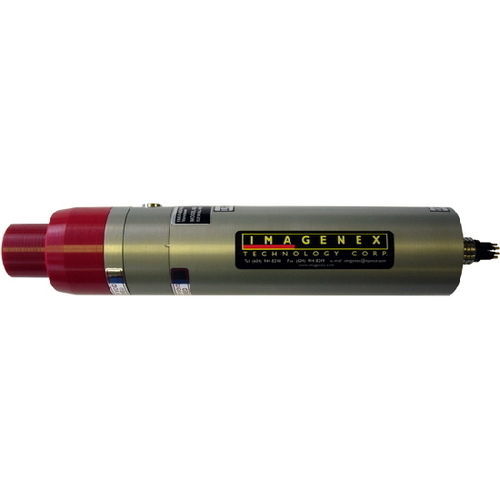

ROV sonar 831Lfor AUVssingle-frequency
Add to favorites
Compare this product
Characteristics
- Application domain
- for ROV, for AUVs
- Technology
- single-frequency
- Max. depth
1,000 m
(3280'10" )- Operating frequency
2 MHz
- Supply voltage
Max.: 32 V
Min.: 20 V
- Power consumption
5 W
Description
Ethernet
Programmable
High performance
Scans 360° in 1.3 sec (up to 1 m range)
Low power
0.125 m to 6 m operation (full scale)
Compact size
Communication format available to user
Built in Pitch/Roll sensor
Applications
Profiling
Pipeline Inspection
Scientific Research
Max. Cable Length
Standard: 100 m on CAT5e
Cable length may be increased up to ~9000 m using an Ethernet extender. Please enquire for more information.
Interface
Standard: 10 Mbps Ethernet (10 BASE-T) using TCP/IP
Bit rate may vary if an Ethernet extender is in use.
Connector
End mounted, eight conductor, wet mateable (Subconn MCBH8M-AS)
