ROV sonar 852 ULTRA-MINIATURE

for AUVsside scan

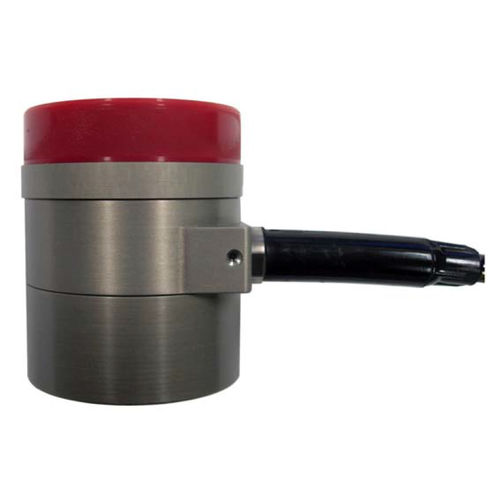

852 Ultra-Miniature Imaging ULTRA-MINIATURE SCANNING SONAR The Model 852 Digital Imaging Sonar was designed for use with the smallest of ROV’s. For maximum flexibility, this is a design with a fluid filled front end and a pressure housing for the electronics. The unit requires approximately 2.5 Watts from 9 – 50 VDC. Serial communication is utilized, RS-485 or RS-232 at 115.2 kbps. This unit will scan a maximum of 360° with a maximum range of 50 meters. The total weight in water is less than 0.2 kg (0.4 lbs). Features Ultra-miniature size is ideal for mounting on today's micro ROV's Continuous rotation Low cost Direct connection to laptop computer Applications ROV Navigation Diving Support Inspection Search & Recovery
