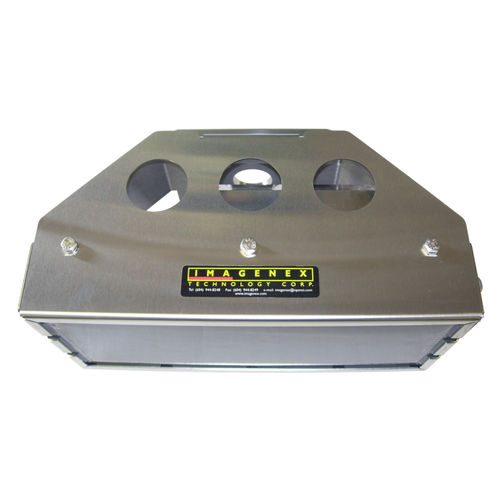

ROV sonar 837B DELTA T

for AUVsmultibeamelectronic

The Imagenex Model 837B “Delta T” 120 kHz is a high resolution multiple receiver sonar system run from a laptop or industrial PC computer. In this model, the acoustic array is designed to provide detection over a 120° x 2.5° field of view for bottom profiling applications. The 2.5° field of view is also applicable to obstacle avoidance in near-bottom applications where the narrow vertical extent of the beam reduces false obstacle detection. A 120 kHz acoustic frequency has been selected to provide detection up to 300 m range. Image update rates are up to 20 times per second at short range and more than 5 times per second at 100 m range. The stainless steel housing provides a 1000 m depth rating for compatibility with ROV and AUV applications. The provided software includes innovative digital signal processing to optimize data usage from all channels to achieve the best possible resolution at every point in the field of view. Recent advances in PC computing power have made it possible to transfer this data over a standard 10 BASE-T Ethernet connection and process it at resolutions equal to computer monitor resolution. Software is also available to store the data with a low power computer for processing into extremely high resolution images after uploading to a desktop PC. The Delta T system has been designed from the ground up with the most advanced low power electronic components available to provide breakthroughs in system power consumption and package size. There is no expensive and bulky surface control box, so integration into ROV and AUV systems is simplified, and the cost is significantly less than other systems of similar capabilities.
