Electric windlass CAESARhydraulicfor shipsvertical
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Application domain
- for ships
- Mounting
- vertical, horizontal
- Set-up
- above deck
- Number of drums
- double-drum
- Function
- anchor with capstan
- Working load
3,200 kg, 3,400 kg, 3,700 kg
(7,055 lb, 7,496 lb, 8,157 lb)- Maximum pull
4,300 kg
(9,480 lb)- Engine power
7,500 W, 9,200 W
(10 hp, 13 hp)- Power supply
230 V, 400 V
- Chain diameter
19 mm, 21 mm, 22 mm
(1 in, 1 in, 1 in)- Boat length
70 m
(229'07" )- Weight
340 kg, 380 kg
(750 lb, 838 lb)
Description

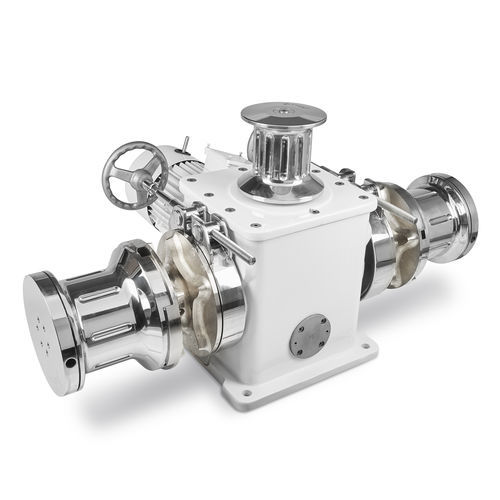

White painted horizontal axis winch. The CAESAR can use chains from 14 mm to 24 mm with stud link in diameter. With different drives and recommended for boats up to 70 m.
Available versions:
-1 gypsy - 1 horizontal drum
-1 gypsy - 1 horizontal drum-1 vertical drum
-2 gypsy - 1 vertical drum
-Other versions on request
