Electric windlass SMART-Vfor boatsverticalabove deck
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for boats
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Working load
90 kg, 100 kg
(198 lb, 220 lb)- Maximum pull
810 kg
(1,786 lb)- Engine power
500 W, 800 W
(1 hp, 1 hp)- Power supply
12 V, 24 V
- Amperage
32 A, 45 A, 60 A, 90 A
- Chain diameter
6 mm, 7 mm, 8 mm
(0 in, 0 in, 0 in)- Boat length
10 m
(32'09" )- Weight
9 kg, 10 kg
(20 lb, 22 lb)
Description

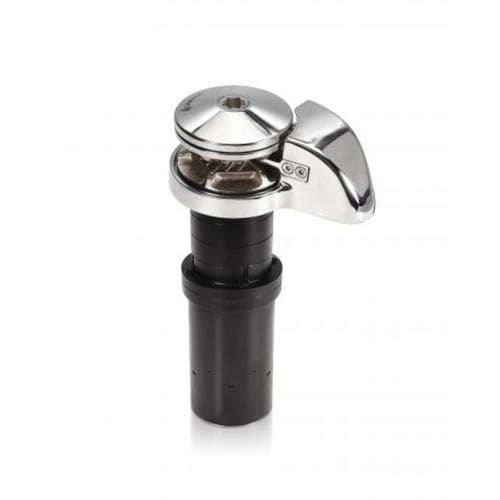

SMART-V is a stainless steel AISI 316 vertical windlass with planetary drive.
Available in high or low profile, with different drives and recommended for boats up to 10m. SMART-V can use the 6 mm or 8 mm chains and is equipped with rope tensioner
