Electric windlass MOONfor yachtsverticalabove deck
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for yachts
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Working load
1,000 kg, 1,250 kg, 1,900 kg
(2,205 lb, 2,756 lb, 4,189 lb)- Maximum pull
3,500 kg
(7,716 lb)- Engine power
3,500 W, 4,000 W
(5 hp, 5 hp)- Power supply
24 V, 230 V, 400 V
- Amperage
195 A
- Chain diameter
12 mm, 13 mm, 14 mm
(0 in, 1 in, 1 in)- Boat length
30 m
(98'05" )- Weight
70 kg, 100 kg
(154 lb, 220 lb)
Description

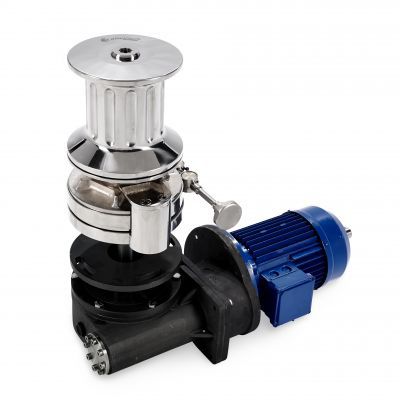

MOON is a stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 30m. MOON can use chains from 12 mm to 14 mm stud link and comes with built-in chain counter sensor. Possibility of 24V, 230V, 400V or hydraulic drive
Catalogs
MZ Electronic Catalogue 2024
122 Pages
