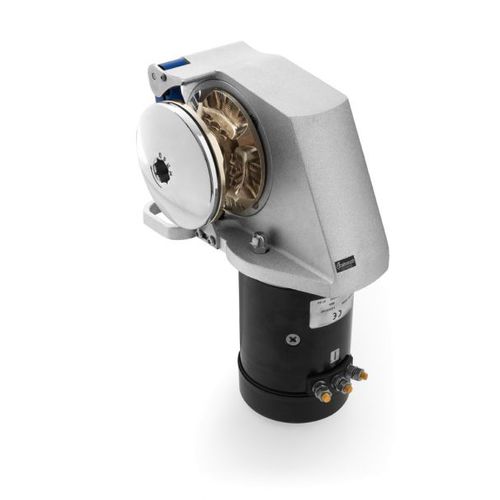

Electric windlass OBI1000for boatshorizontalabove deck
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for boats
- Mounting
- horizontal
- Set-up
- above deck
- Number of drums
- single-drum
- Working load
130 kg, 140 kg, 150 kg, 160 kg
(287 lb, 309 lb, 331 lb, 353 lb)- Maximum pull
1,390 kg
(3,064 lb)- Engine power
1,000 W, 1,500 W
(1 hp, 2 hp)- Power supply
12 V, 24 V
- Amperage
60 A, 70 A, 115 A, 130 A
- Chain diameter
6 mm, 8 mm, 10 mm
(0 in, 0 in, 0 in)- Weight
17 kg, 18 kg
(37 lb, 40 lb)
Description
Horizontal axis windlass made in anodized aluminium alloy, with chromed gipsy cover. Available in two different models Obi-500 and Obi-1000, which are both supplied with manual chain freefall system, the former with 500 W motorization (12V or 24V) and gipsy for 6mm or 8mm chains. Obi-1000 is available with 700W, 1000W or 1400W motorization (12V or 24V) and gipsy for 6mm, 8mm or 10mm chains.
