Electric windlass NV 16hydraulicfor boatsvertical
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Application domain
- for boats
- Mounting
- vertical
- Set-up
- below deck
- Number of drums
- single-drum
- Working load
1,100 kg, 1,250 kg, 1,700 kg, 3,000 kg
(2,425 lb, 2,756 lb, 3,748 lb, 6,614 lb)- Maximum pull
4,200 kg
(9,259 lb)- Engine power
3,000 W, 3,500 W, 4,000 W
(4 hp, 5 hp, 5 hp)- Power supply
24 V, 230 V, 400 V
- Boat length
42 m
(137'09" )- Weight
170 kg, 220 kg
(375 lb, 485 lb)
Description

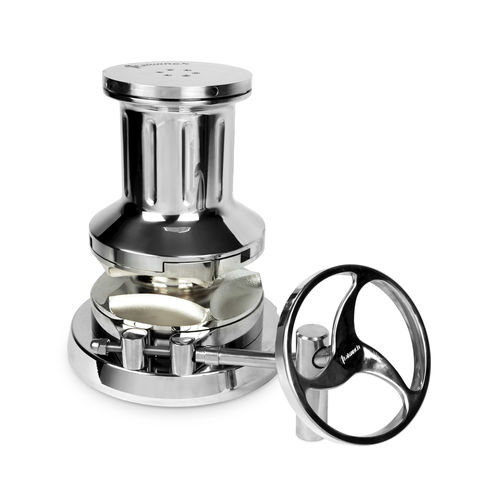

NV 16 is a stainless steel AISI 316 vertical windlass. Available in electric and hydraulic versions, it is suggested for boats up to 42 meters. It can bring chains from 12mm to 16mm with stud link. The electromagnetic brake and dog clutches instead conical clutches are standard.
