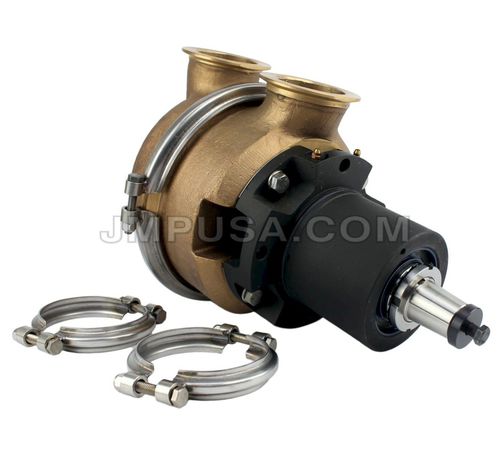

Marine pump JPR-C3800

engine coolingseawaterimpeller

Replaces Cummins 3049157, 3085649, 3897669, Gilkes Product Information & Specs: Uses JMP Bronze Impeller p/n: IMP002603 Port Type: Flange 2" Replaces Genuine Cummins Pump p/n: 3049157, 3085649, 3897669 For Engine Model(s): K38, KT38M, KTA38M, KTA50M Pump Weight (approx): 90 LBS (40.90 KG) Parts Internally Compatible to Genuine: YES Major Service Kit (All Internal Parts): JSK0123 (*Sold Separately) Seal Service Kit: JMK0001 (*Sold Separately) Product Features: 100% Plug & Play Replacement Compatible with Genuine Heavy Duty Marine Grade Casting Heavy Duty Durability Marine Grade Shaft (3X Series Non-Magnetic) High Performance Bronze Impeller NOTE: Cummins has 3 different pumps for the KTA50 engine models; so you want to always be sure to check what Genuine Cummins pump part number you have to properly find the JMP Marine pump replacement for you. JMP Marine's #JPR-C3800 (replaces Cummins 3085649 / 3049157 / 3897669) is the replacement pump for the older style Cummins Series which uses 2 pumps (38 Liters). Cummins then developed a new pump for KTA38 and KTA50 Series which replaces the 2 pump setup; one is from Jabsco and the other is from Gilkes. If your engine has a one pump setup and not 2 then please see below: A) Engine With One Pump Setup - Jabsco Vortex Pump: Vortex Pump (KTA38, KTA50 Series) Make: JABSCO Jabsco Pump p/n: 15780-0000 Cummins Pump p/n: 3393018, 4314820, 4314522 Engine Models: KTA38M0, KTA38M1, KTA38M2, KTA50M0 Jabsco Bronze Centrifugal Impeller Kit (Includes Wear Ring): JA 15298-1020 Jabsco Major Kit (All internal Parts except Centrifugal Impeller & Wear Ring): JA 99202-1000
