Boat pump Heavy Duty
bilgeballastwater

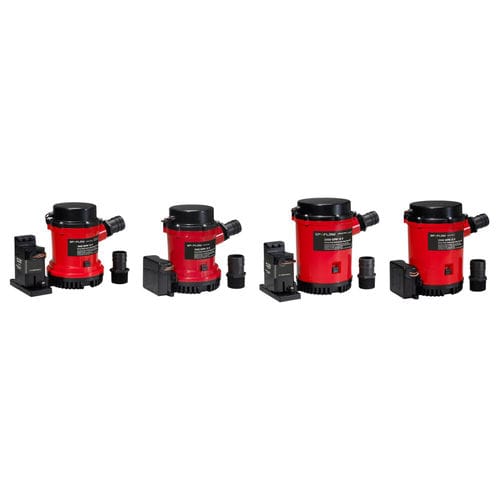

Boat pump - Heavy Duty - Johnson Pump Marine - bilge / ballast / water
Boat pump - Heavy Duty - Johnson Pump Marine - bilge / ballast / water
Boat pump - Heavy Duty - Johnson Pump Marine - bilge / ballast / water - image - 2
Add to favorites
Compare this product

Go to the Johnson Pump Marine website for more information

Characteristics

Application domain
for boats
Applications
bilge, ballast
Fluid
water
Technology
impeller, electronic
Operation
electric, automatic
Voltage
12 V, 24 V
Fuse size
10 A
Other characteristics
submersible, automatic, with float level switch
Flow rate

98 l/min, 100 l/min, 120 l/min, 130 l/min
(25.89 us gal/min, 26.42 us gal/min, 31.7 us gal/min, 34.34 us gal/min)

Power consumption

3.5 A, 4.5 A, 7 A, 7.5 A

Hose diameter

29 mm, 32 mm
(1 in, 1 in)

Description

Heavy Duty Combo Bilge Pumps are equipped with either the non-clogging electronic switch Ultima Switch or the electro-magnetic float switch or for automatic operation. Designed to meet and exceed the tough demands of commercial and recreational duty. -Pre-wired with either the non-clogging electronic switch Ultima Switch (USA + rest of the world) or the electro-magnetic float switch (USA only) for automatic operation -Capacities of 1600 GPH or 2200 GPH -Liquid cooled, 12-pole motor with double ball bearings for extended service life -2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal -Impeller is carefully designed and tested to maximize head and flow -Universal base plate and choice of two different ports makes for a simple installation -Removable check valve included

VIDEO
